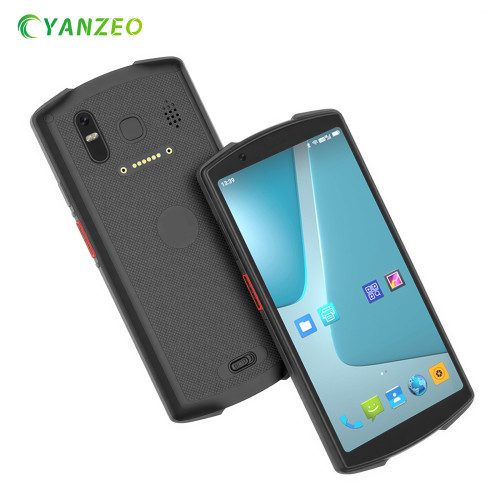

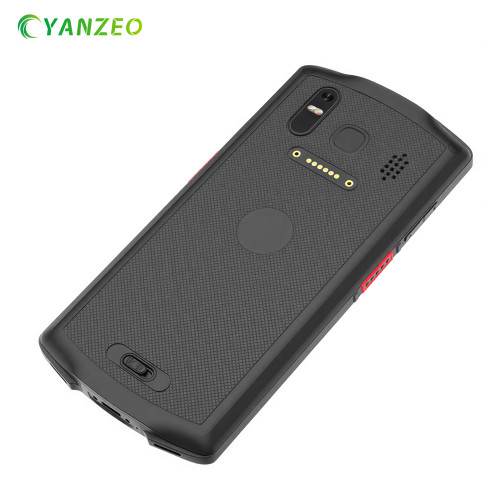

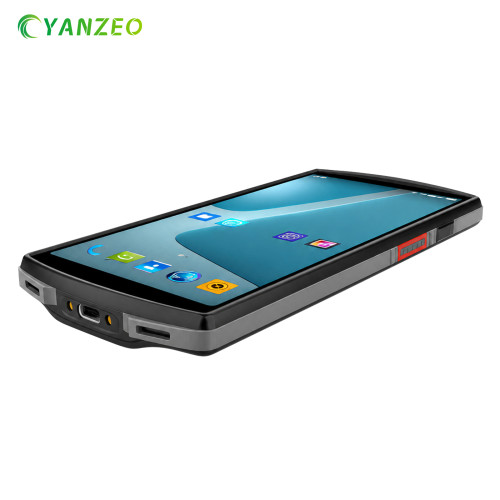

Yanzeo SC620 5G Handheld Terminal PDA Biometric Fingerprint Reader Honeywell N6703 2D Barcode Scanner for WMS Order Picking
- Model
- SC620
Review
Description
Product Overview
Empower your workforce with the Yanzeo SC620 5G Smart Handheld Terminal. Engineered for modern logistics, retail, and field service operations, the SC620 seamlessly bridges the gap between consumer smartphone aesthetics and enterprise-grade durability. It leverages high-speed 5G connectivity and offers versatile optional configurations, including high-frequency NFC and top-tier barcode scanning modules, to meet the exact demands of your enterprise workflows.
Key Features
Flagship Processing & Memory
Runs on modern Android 13 with a 64-bit Cortex-A76/A55 Octa-core processor. Comes standard with 6GB RAM + 128GB ROM, effortlessly handling resource-intensive WMS/ERP applications without latency.
Expansive Display in an Ultra-Slim Body
Features a large 5.93-inch display (720x1440) with >450cd/m2 brightness in an incredibly sleek body measuring just 12.3mm thick, significantly reducing operator fatigue.
Enterprise-Grade Ruggedness
Certified with an IP66 protection rating against dust and water jets, and engineered to withstand multiple 1.2-meter drops onto concrete.
Flexible Modular Customization
Supports high-performance optional modules, including Honeywell 2D barcode scan engines (N6703/N6602-W2/N6803) and 13.56MHz NFC for seamless operational scalability.
-
Technical Specifications
Category
Specification Details
Brand & Model
Yanzeo SC620
Operating System
Android 13
Google Services
Full GMS (Google Mobile Services)
Processor
Cortex-A76/A55 Octa-Core 64-bit
Memory & Storage
6GB RAM + 128GB ROM

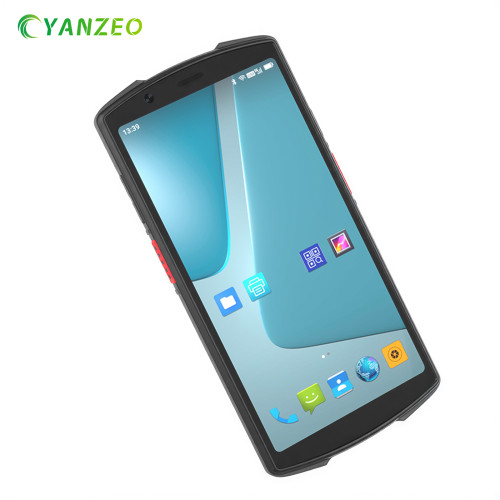

Display
5.93-inch, 720×1440 Resolution, >450 cd/m² Brightness
Dimensions
164.5mm × 79.4mm × 12.3mm
Cellular Network
5G Full Netcom
Wi-Fi
Dual-band 2.4GHz / 5GHz (IEEE 802.11 a/b/g/n/ac)
Bluetooth
Bluetooth 5.0 (Transmission Range: 5–10m)
Positioning (GNSS)
GPS, Galileo, Glonass, Beidou
Cameras
Rear: 13MP High-Definition Camera
Front: 5MP Color Camera
Audio & Keys
Speaker >88dB (Test distance: 10cm)
Silicone Keys: Power Key, Volume +/-, Scan Key × 2
Battery
3.8V 4200mAh Removable Rechargeable Polymer Battery
Interfaces & Slots
Type-C USB × 1 (OTG Supported), Nano SIM Slot
Protection Rating
IP66 Sealing
Drop Specification
Multiple 1.2m drops to concrete
Operating Temp
-20°C to 55°C
Storage Temp
-40°C to 70°C

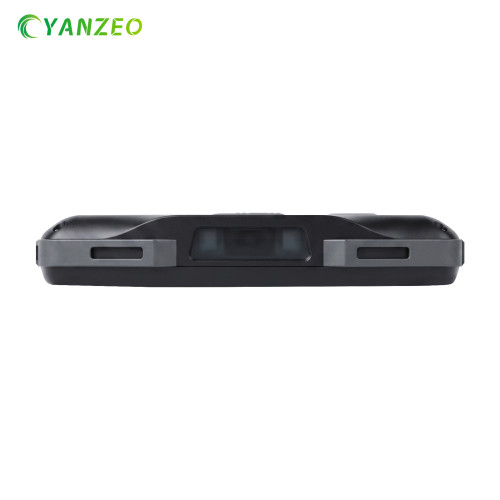

2D Barcode Scanner Engine
Choice of Honeywell Engines:
• Honeywell N6703
• Honeywell N6602-W2
• Honeywell N6803
NFC Reader
• Frequency: 13.56MHz
• Protocols: ISO14443A/B, ISO15693
• Reading Distance: 2cm – 5cm
