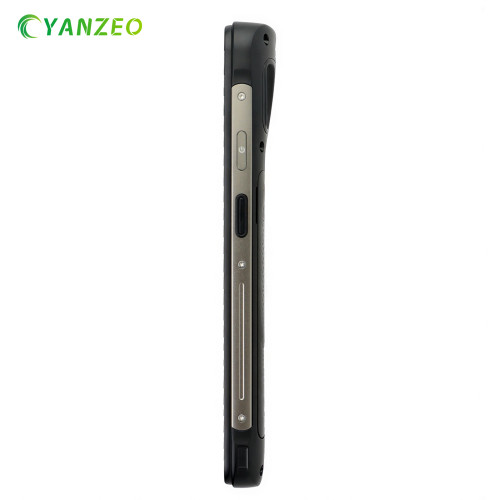

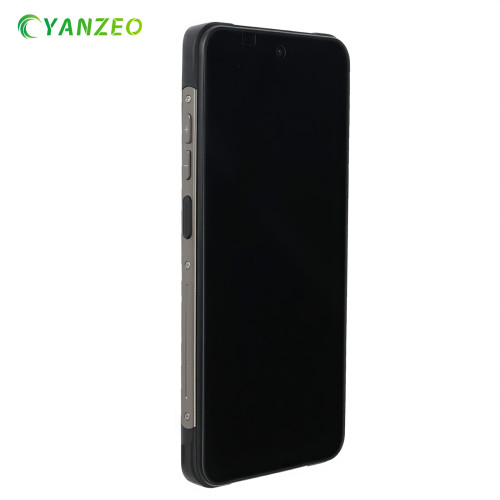

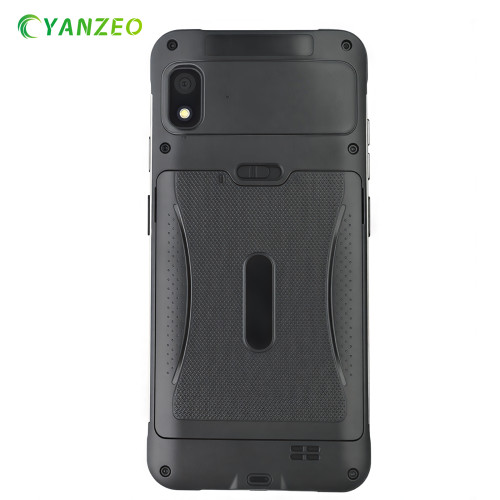

Yanzeo SA610 IP68 Rugged Android 15 Mobile Computer Waterproof Handheld PDA 8GB+256GB with PoC Intercom Wi-Fi & GPS for Logistics & Warehouse
- Model
- SA610
Review
Description
Product Overview
The Yanzeo SA610 is an ultra-slim (13.7mm), IP68-rated rugged 4G mobile computer running Android 15 with full GMS support. Powered by an MT6789 2.2GHz Octa-Core processor, it integrates a 6.088" HD waterdrop display, dedicated E60/T20 1D/2D barcode scanner, PoC public network intercom, and a swappable 5000mAh battery with 9V/2A fast charging for warehouse, retail, and field operations.
Highlight
Flagship Processing on Android 15 Powered by MediaTek's MT6789 2.2GHz 6nm Octa-Core platform running the cutting-edge Android 15 operating system, the SA610 guarantees fast execution of resource-heavy enterprise software. Choose between 4GB + 64GB or 8GB + 256GB memory options, all backed by pre-installed Full Google Mobile Services (GMS).
6.088-Inch Reinforced High-Aluminum Glass Display Equipped with a vivid 1560 × 720 HD waterdrop display protected by high-aluminum white glass. The sensitive 5-point capacitive panel fully supports wet-finger tracking, glove operation, and custom gesture controls, ensuring smooth interaction in rain, cold storage, or industrial plant floors.

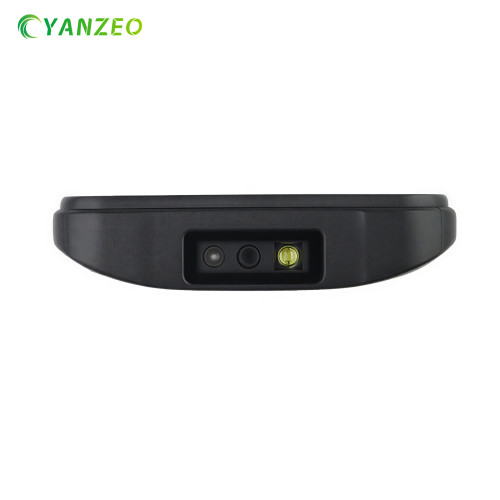

Integrated Professional 1D/2D Scan Engine (E60 / T20) Equipped with dedicated E60 or T20 2D barcode imagers, the SA610 effortlessly decodes 1D barcodes and 2D matrix codes (QR Code, Data Matrix, PDF417, etc.), even when barcodes are stained, wrinkled, wrapped in reflective film, or displayed on mobile screens.
Public Network PoC Intercom & Enhanced Audio Turn your PDA into a nationwide walkie-talkie. The SA610 supports carrier-grade and independent PoC (Push-to-Talk over Cellular) software, paired with a loud 1.5W internal speaker and Bluetooth 5.2 PTT headset support for crystal-clear team communication in loud environments.
Comprehensive IP68 Sealing & Explosion-Proof Engineering Certified to IP68 dustproof and waterproof standards with structural shock protection and explosion-proof design. It operates reliably across extreme temperatures from -20°C to +55°C (storage from -40°C to +70°C).
Removable High-Capacity Battery & 9V/2A Fast Charge Features a swappable 5000mAh (or 4250mAh explosion-proof) battery. Recharge quickly using the Type-C USB 2.0 port with 9V/2A fast charging or an optional multi-slot docking cradle.
Multi-Constellation Navigation & Enterprise Hardware Security Integrated GPS + Beidou + GNSS + GLL + AGPS provides rapid location locking for logistics route management. An optional motherboard-reserved PSAM card slot (ISO7816-1/2/3/4) is available for high-security identification and encrypted mobile payment validation.
Technical Specifications
Category | Specification Details |
|---|---|
Product Brand / Model | Yanzeo SA610 |
Product Category | 4G Three-Defense Smart Intercom & Barcode Terminal |
Operating System | Android 15 (Full GMS Support: Google Play, Maps, Chrome, Services) |
Processor (CPU) | MT6789 Octa-core, 2.2GHz |
Memory Options | 4GB RAM + 64GB ROM / 8GB RAM + 256GB ROM |
Main Display | 6.088-inch Waterdrop Display, 1560 × 720 Resolution |
Touchscreen Panel | Capacitive 5-point touch, high-aluminum white glass, glove & gesture support |
Barcode Scan Engine | Dedicated E60 / T20 1D/2D CMOS Imaging Engine |
Public Network Intercom | Supports carrier PoC & multi-vendor push-to-talk software |
Rugged Protection | IP68 Waterproof, IP68 Dustproof, Professional Shock/Explosion-proof Resistance |
SIM Card Configuration | Dual Nano SIM Card slots |
Cellular Network (WWAN) | 4G Full Netcom (FDD-LTE / TDD-LTE / WCDMA / TD-SCDMA / CDMA EVDO / GSM) |
Supported Bands | GSM: B2/3/5/8; WCDMA: B1/2/4/5/8; CDMA: BC0; LTE-FDD: B1/2/3/4/5/7/8/17/20; LTE-TDD: B34/38/39/40/41 |
Wireless LAN (Wi-Fi) | Dual-Band 2.4GHz / 5.0GHz Wi-Fi (802.11 a/b/g/n/ac) |
Bluetooth | Bluetooth 5.2 (Supports Bluetooth PTT headsets) |
Positioning / GNSS | GPS + Beidou + GNSS + GLL + AGPS |
NFC | 13.56 MHz (Supports Identity / Card Recognition) |
PSAM (Optional) | Motherboard reserved interface, compliant with ISO7816-1/2/3/4 standards |
Camera | Front: 5.0 MP Fixed Focus; Rear: 16.0 MP Auto Focus with 4×4 High-Brightness Flash |
Audio & Speaker | 1.5W loud speaker, Type-C wired earphone support |
Sensors | Accelerometer, Compass, Proximity Sensor, Light Sensor, 3-Axis Gyroscope |
Flashlight | High-beam professional flashlight replacement (100–150mAh working current) |
Battery (Removable) | 5000mAh standard / 4250mAh explosion-proof removable battery |
Charging Method | Type-C USB 2.0 (Supports 9V/2A Fast Charging & OTG) / Optional Cradle Charger |
Physical Keys | Right Side: Volume +, Volume -, Power Key, Dual Custom Function Keys |
Dimensions & Color | 160 mm × 76 mm × 13.7 mm; Body Color: Black |
Operating Temperature | -20°C to +55°C (Storage: -40°C to +70°C) |
