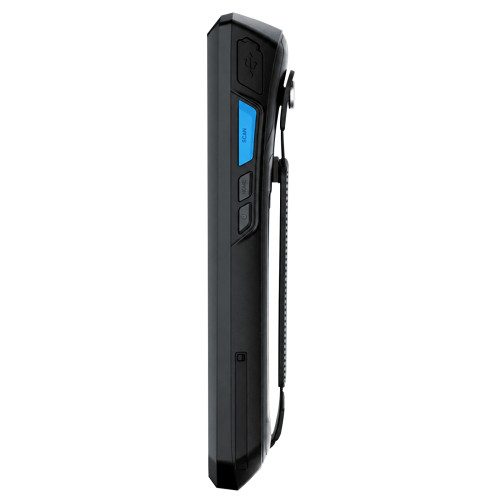

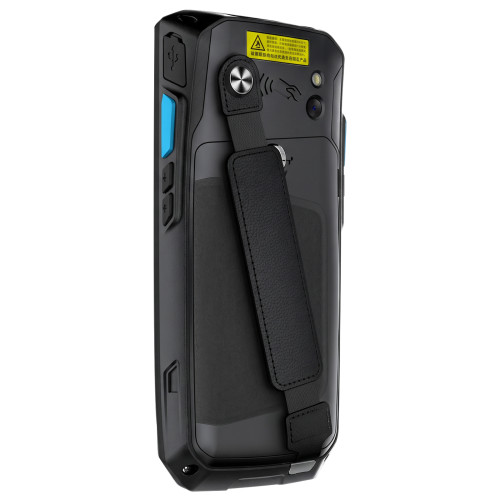

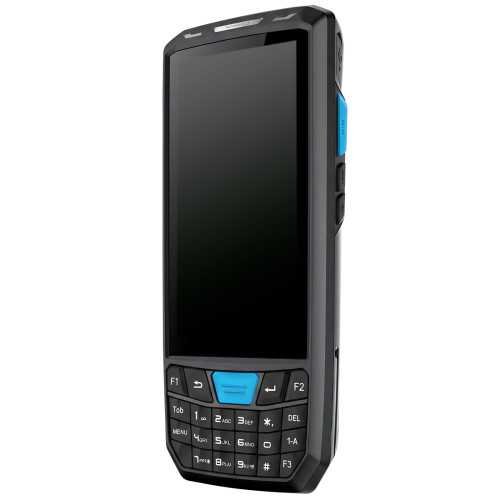

Yanzeo SC800 Handheld Computer 1D 2D Android Barcode Scanner & Optional NFC Industrial Mobile PDA for Logistics
- Model
- SC800
Review
Description
Product Overview
The Yanzeo SC800 Industrial Handheld Mobile Terminal is a high-performance, rugged Android PDA specially engineered for logistics, warehousing, retail, and field operations. Running on the latest Android 13 operating system and equipped with an octa-core 64-bit processor, the Yanzeo SC800 balances powerful computing capabilities with a lightweight, ergonomic design. Whether managing inventory in severe environments or handling high-volume barcode scanning, the Yanzeo SC800 guarantees maximum efficiency and operational uptime.
Key Features
-
Powerful Hardware & Android 13
Built on an MT6765 Octa-Core processor with 4GB RAM + 64GB ROM storage, providing smooth multitasking, robust security, and long-term compatibility for enterprise applications.
-
Advanced Data Collection Options
Integrated with industrial-grade 1D/2D optical scan engines (compatible with Honeywell N5703/N6703/N6602 series), capable of reading damaged, smudged, or low-contrast barcodes effortlessly. Built-in NFC (ISO14443A/B, 15693 protocols) supports seamless proximity authentication and data exchange.
-
Ultra-Rugged Build (IP66 & 1.5m Drop Resistance)
Designed to withstand challenging industrial environments, the Yanzeo SC800 holds an IP66 rating against water immersion and dust ingress, and survives repeated 1.5-meter concrete drops.
-
Crystal-Clear Display & HD Camera
Features a 4.5-inch IPS high-brightness sunlight-readable display (>500 cd/m²) and an 8MP rear camera with auto-focus and LED flash for high-quality image capture and video logging on-site.
-
Seamless Global Connectivity
Supports 4G LTE full network coverage, 2.4GHz/5GHz dual-band enterprise Wi-Fi (IEEE 802.11 a/b/g/n/ac), Bluetooth 5.0 BLE, and multi-system GNSS (GPS/Glonass/Galileo/Beidou) for real-time tracking and zero-latency communication.
-
-
Technical Specifications
|
Category |
Specification Details |
|---|---|
|
Brand & Model |
Yanzeo SC800 |
|
OS & Processor |
Android 13.0 | MT6765 Octa-Core 64-bit CPU |
|
Memory |
4GB RAM + 64GB ROM (Micro SD / TF expansion up to 128GB) |
|
Display |
4.5" IPS Color Display (480 × 854 resolution, >500 cd/m² brightness) |
|
Data Capture |
1D / 2D Barcode: Optional Honeywell (N5703/N6703/N6602) / Minde 966 NFC: 13.56MHz, ISO14443A/B, 15693 (Read Distance: 2–5cm) |
|
Camera |
8.0 MP Rear Camera with Auto-Focus, Flashlight, Macro & Anti-Shake |
|
Wireless & Network |
4G Cellular: Global 4G LTE Wi-Fi: Dual-Band 2.4G/5G (802.11 a/b/g/n/ac) Bluetooth: BT 5.0 + BLE GNSS: GPS / Glonass / Galileo / Beidou |
|
Physical & Power |
Dimensions: 166mm × 77.5mm × 22mm Battery: 3.8V / 4330mAh Removable Li-polymer Battery Interfaces: Type-C USB (OTG support), POGO Pin, Micro SIM x 1, TF Card x 1 |
|
Industrial Protection |
Sealing: IP66 rating Drop Spec: 1.5m drops to concrete across operating temperature |
|
Operating Temp |
-20°C to 55°C (Storage: -40°C to 70°C) |
Target Applications / Use Cases
Warehouse & Logistics: Inventory control, inbound/outbound receiving, order picking, and package tracking.
Retail & E-Commerce: Price checking, shelf replenishment, store inventory management, and mobile POS.
Manufacturing & Asset Tracking: Work-in-progress (WIP) tracking, component traceability, and equipment inspection.
Healthcare & Public Services: Field service data logging, ticketing, and administrative asset management.
