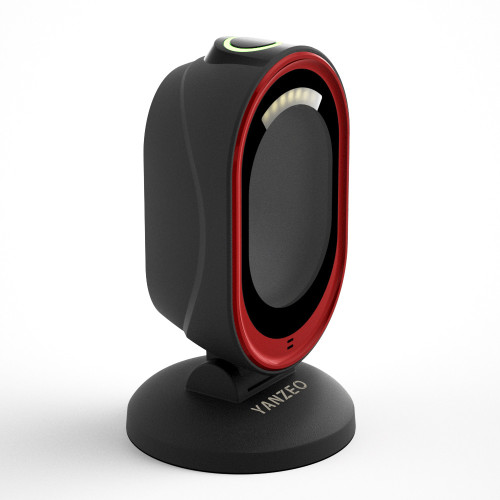

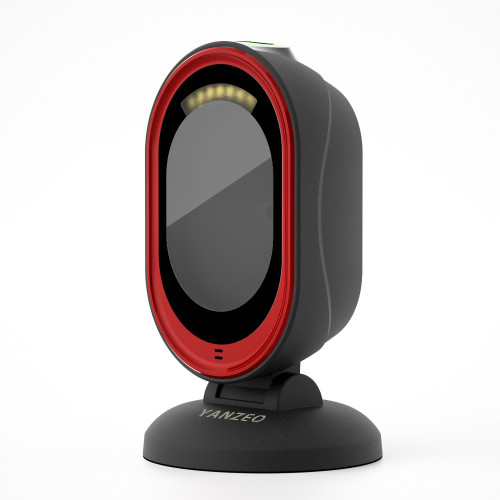

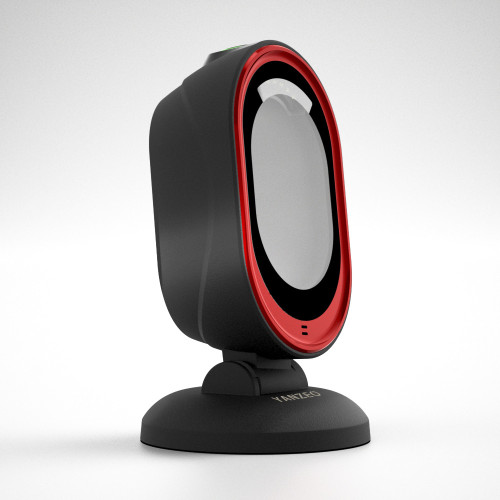

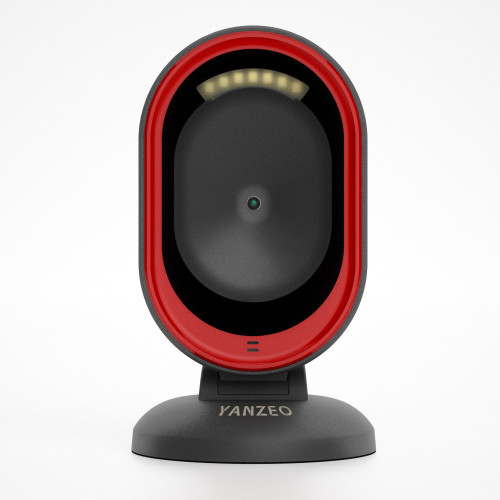

YANZEO YX30‑1000A 2D Desktop Barcode Scanning Platform
- Model
- YX30
Item specifics
- Scan Mode
- Auto‑sensing / Continuous Scanning
- Indicator Light
- Soft‑bright LED Light
- Window Feature
- Large Scanning Window
- Material
- ABS + PC
Review
Description
|
Physical parameters |
|
|
Scan mode |
Auto-sensing/continuous scanning |
|
Communication interface |
USB-HID keyboard, USB-COM virtual serial port, RS232 serial port (optional). |
|
Interface type |
USB TYPE-B |
|
Prompt way |
Buzzer, LED light |
|
How it's set up |
Press the button to set it, and manually scan the setting code in turn |
|
Housing material |
ABS+PC |
|
Cable standards |
Straight line 1.3m |
|
Exterior dimensions |
148mm×87mm×87mm (product); 165mm×100mm×110mm (outer packing) |
|
Weight |
Net weight 228g; Gross weight 364g |
|
Performance parameters |
|
|
The type of scan |
CMOS global exposure |
|
Resolution |
64 0× 48 0 |
|
Light source |
617nm red LED |
|
Scan angle |
± 60°, ± 54°, 360° (left and right, front and back, rotating). |
|
Scan rate |
120 frames/sec |
|
Field of view |
48° (H) x 30° (V) |
|
Print contrast |
20% minimum |
|
Decode the kind |
1D:EAN- 13 ， EAN-8 ， UPC-A ， UPC-E ， ISSN ， ISBN ， CodaBar ， Code 128 ， Code93 ， ITF- 14 ， ITF-6 ， Interleaved 2 of 5 ， Industrial 2 of 5 ， Matrix 2 of 5 ， GS1 Databar(RSS) ， Code 39 ， Code 11 ， MSI-Plessey ， etc 2D: QR Code ， Data Matrix ， PDF417 ， Micro QR ， Aztec ， etc |
|
Minimum resolution |
1D 3mil 2D 5mil |
|
Electrical parameters |
|
|
Input voltage |
DC 5V±10% |
|
Current |
Operating: 240 mAh; Standby: 190 mAh |
|
Environmental parameters |
|
|
Temperature |
-10°C~+50°C(Working); -20°C~+70°C (storage). |
|
Humidity |
5%-95% non-condensing |
