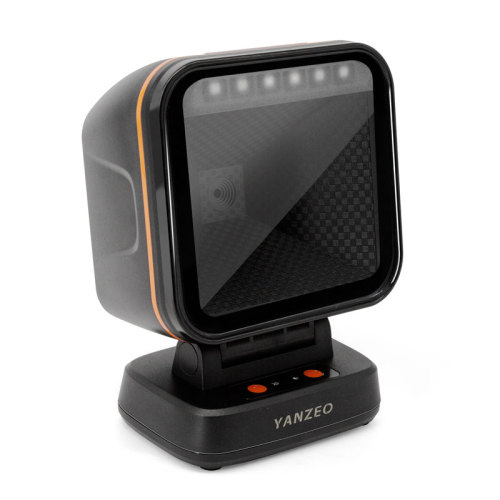

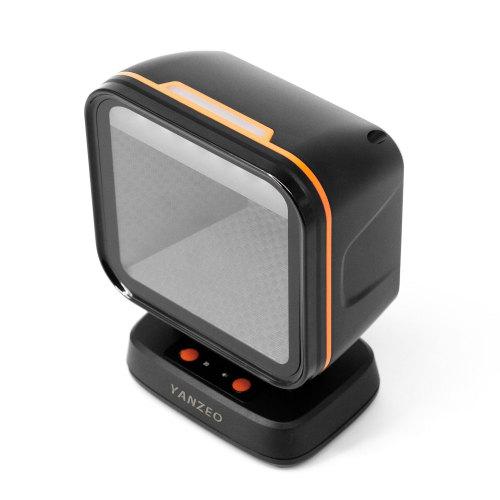

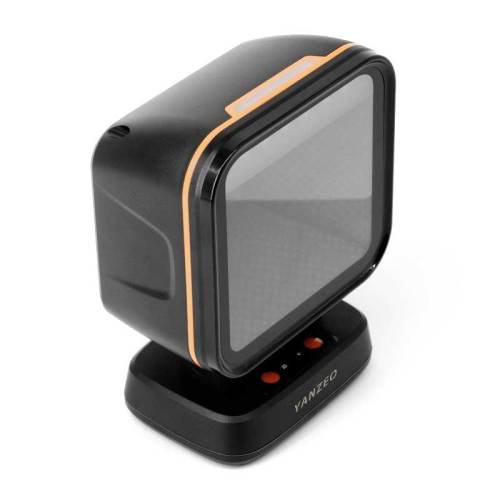

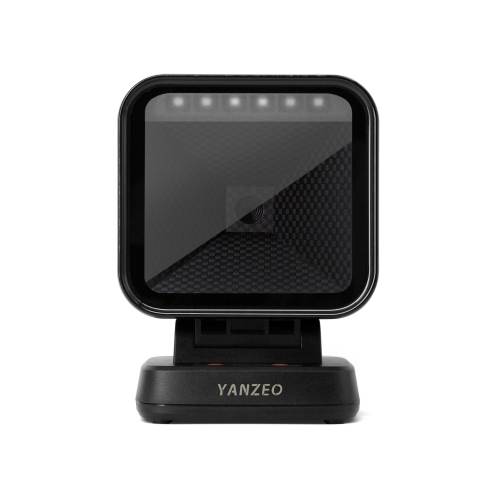

YANZEO YX1 High‑Performance 2D Desktop Barcode Scanning Platform Large Window s for Retail Supermarket POS
- Model
- YX1
Item specifics
- Scan Mode
- Auto‑sensing / Continuous Scanning
- Indicator Light
- Soft‑bright LED Light
- Window Feature
- Large Scanning Window
- Material
- ABS + PC
Review
Description
|
Physical parameters |
|
|
Scan mode |
Auto-sensing/continuous scanning |
|
Communication interface |
USB-HID keyboard, USB-COM virtual serial port, RS232 serial port |
|
Interface type |
USB TYPE-B |
|
Prompt mode |
Buzzers, LED lights |
|
Set up way |
Press the button to set, manually scan the setting code in turn |
|
Shell material |
ABS+PC |
|
Cable standards |
Straight line 1m |
|
Exterior dimensions |
122mm×160mm×76mm |
|
Weight |
312g (without cable). |
|
Performance parameters |
|
|
Scan type |
CMOS global exposure |
|
Differentiation |
800*600 |
|
Light source |
617nm red LED |
|
Scan angle |
± 60°, ±54°, 360° (left and right, front and back, rotation). |
|
Scan rate |
20 cm/s |
|
Field of view angle |
48° (H) x 30° (V) |
|
Print contrast |
Minimum 20%. |
|
Decoding Types |
1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, ChinaPost 25, GS1 Composite 2D: QR Code, Data Matrix (DM), PDF417, Han Xin, Micro PDF417, Micro QRCode, MaxiCode, Aztec Code, Code16K, support mobile phone screen reading |
|
Minimum resolution |
4 MIL |
|
Electrical parameters |
|
|
Input voltage |
DC 5V±10% |
|
Current |
Working: 240 mAh; Standby: 190 mAh |
|
Environment parameters |
|
|
Temperature |
0°C-50°C (working); -20°C~+70°C (storage). |
|
Humidity |
5%-95% non-condensing |
