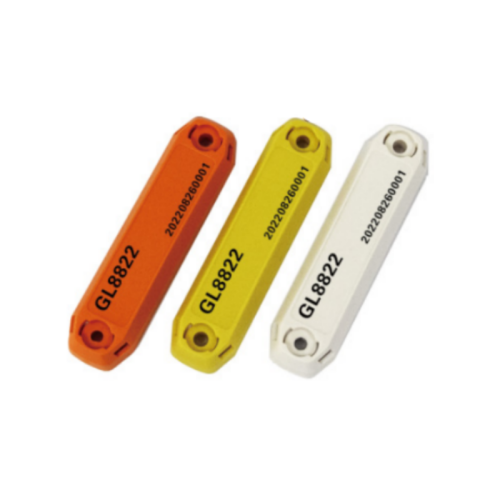

Yanzeo-GL8822-UHF-RFID-Tag-Anti-metal-tag-UHF-long-distance-waterproof-ABS-electronic-tag-asset Management Tracking
- Model
- GL8822
Item specifics
- Color
- Orange, yellow, white
- Mechanical size
- 69mm x20mm x8mm
Review
Description
Product Features
- A variety of installation methods can bring back glue, tie, rivet, or Screw fixation
- Can be used in metal environment occasions
- The distance can be read at the farthest surface of the metal surface 15 meters
Technical Parameters
Parameter | Specification |
|---|---|
Material | Modified ABS |
Packing process | Ultrasonic welding |
Color | Black, orange, blue, gray, yellow |
Size | 88 × 22 × 12 mm (5mm in the installation hole) |
Weight | About 25 g |
Waterproof level | IP66 |
Operating temperature | -10 °C ~ +65 °C (free of freezing) |
Storage temperature | -20 °C ~ +75 °C (free of freezing) |
Chip type | ICODE SLIX2 (HF) / Higgs9 (UHF) |
Working frequency | 13.56 MHz (HF) / 902~928 MHz (UHF) |
Standards compliant | ISO 15693 (HF) / ISO 18000-6C (UHF) |
Reading distance | 80 mm (HF) / 15 m (UHF)* |
Operating mode | Readable |
Data storage time | > 10 years |
Can be written | > 100,000 times |
Packing | 100 pcs/bag |
Application field
- Rotary basket management
- Shelf management
- Packing box management
- Equipment asset management
