Yanzeo YS868I Desktop 2D Barcode Scanner – Omnidirectional Million-Pixel Scanner with USB & RS232 Interface
- Share
- Issue Time
- Jul 17,2025
Summary
The Yanzeo YS868I is a high-performance desktop 2D barcode scanner with a million-pixel sensor, USB & RS232 interfaces, and omnidirectional scanning capability. Ideal for POS, warehousing, and industrial automation.
Overview

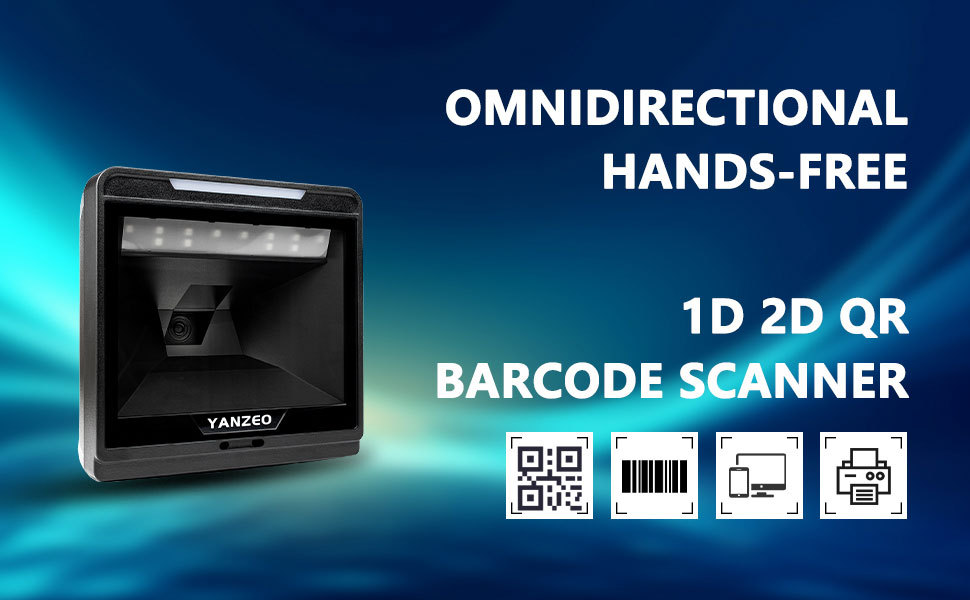

The Yanzeo YS868I is a high-performance, omnidirectional desktop 2D barcode scanner equipped with a powerful 1280 × 800 pixel sensor. Designed for retail, logistics, and industrial use, it reads both 1D and 2D barcodes quickly and accurately. With plug-and-play support for USB and RS232 interfaces, it offers flexible integration for various systems.
Compact and durable, the YS868I is perfect for POS terminals, inventory management, document tracking, and check-in stations. It supports both manual and auto-sensing scan modes, enabling efficient hands-free operation during busy workflows.
Key Features
-
High-resolution sensor: 1280 × 800 pixels for sharp, reliable decoding
-
Broad barcode support: Reads 1D and 2D barcodes including QR Code, PDF417, and Data Matrix
-
Dual interface: USB (HID Keyboard/Virtual COM) and RS232 (TTL-232)
-
Flexible scanning modes: Manual trigger and automatic sensing
-
Rugged design: ABS+PC housing resists drops up to 2 meters
-
Clear feedback: Blue LED and buzzer indicators
-
Wide field of view: 51° horizontal × 34.5° vertical
-
Low power consumption: 5V DC, 170mA working current
-
Excellent depth of field: Up to 200 mm for 1D barcodes, 150 mm for 2D
Technical Specifications
| Parameter | Details |
|---|---|
| Resolving Power | 1280 (H) × 800 (V) pixels |
| Light Source | 617 nm red LED |
| Field of View | 51° (H) × 34.5° (V) |
| Scan Mode | Manual / Auto sensor |
| Print Contrast | ≥ 25% |
| Visual Indicator | Blue LED, buzzer |
| Interfaces | USB 1.1 (HID Keyboard, Virtual COM), RS232 |
| Depth of Field | 0–200 mm @ UPC/EAN 13mil; 0–150 mm @ QR 20mil |
| Input Voltage | 5V DC ± 10% |
| Working Current | 170 mA |
| Dimensions (L×W×H) | 153.2 mm × 75.2 mm × 151.4 mm |
| Weight | 260 g (without cable) |
| Cable Length | 1.8 m straight |
| Material | ABS + PC |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to +60°C |
| Humidity | 5%–95% RH (non-condensing) |
| Ambient Light | 0–4,000 Lux (fluorescent), up to 100,000 Lux (sunlight) |
| Drop Resistance | Up to 2 meters |
Supported Barcode Types
1D Barcodes
UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39 (full ASCII), Codabar (NW7), Code 128 & EAN 128, Code 93, Interleaved 2 of 5 (ITF), Addendum 2 of 5, IATA Code, MSI/Plessy, China Postal Code, Code 32 (Italian Pharmacode), RSS 14, RSS Limited, RSS Expanded.
2D Barcodes
QR Code, Data Matrix, PDF417, Aztec, Maxicode, GS1 DataBar stack.
Applications
-
Point of Sale (POS) systems
-
Logistics and warehouse management
-
Document and asset tracking
-
Retail checkout and inventory control
-
Patient or visitor check-in stations
-
Self-service kiosks
Why Choose Yanzeo YS868I?
The Yanzeo YS868I blends fast, accurate scanning with a rugged, compact design and versatile connectivity. It’s an ideal choice for busy retail environments, warehouses, and industrial settings requiring reliable omnidirectional barcode reading. The scanner’s plug-and-play functionality makes setup quick and effortless, boosting operational efficiency.
Our Focus
-
RFID products: tags, readers, writers
-
Barcode scanners (1D & 2D)
-
PDAs and mobile computers
-
Printer accessories and parts
We are actively looking for agents and partners worldwide. OEM orders and global cooperation are welcome. Large stocks ensure stable supply and fast delivery.
Ordering & Shipping
-
All products are thoroughly tested before shipment
-
Bulk orders? Contact us for competitive pricing
-
Fast shipping via FedEx, DHL, or UPS (typically 3–5 days worldwide)
-
No combined shipping discounts or pickup services
-
Please verify your shipping address carefully
-
Address changes or direct shipments to third parties can be arranged upon request
Interested in the Yanzeo YS868I?
Contact us today to learn more or place your order!
